Input/Output Layer (IOLib)


setDraw
to draw 1-dimensional or 2-dimensional data



FUNCTIONS

Plot2D - setDraw(int[] data)
Plot2D - setDraw(int[] data, boolean connected)
Plot2D - setDraw(double[] data)
Plot2D - setDraw(double[] data, boolean connected)
Plot2D - setDraw(int[][] data)
Plot2D - setDraw(double[][] data)

Plot2D - setDraw(int[][] data, int[] clusters)
Plot2D - setDraw(double[][] data, int[] clusters)
Plot2D - setDraw(Object[] object)
Plot2D - setDraw(Object[] object, Paint[] colors)
Plot2D - setDraw(Plot2D plot, int[] data)
Plot2D - setDraw(Plot2D plot, int[] data, boolean connected)
Plot2D - setDraw(Plot2D plot, double[] data)
Plot2D - setDraw(Plot2D plot, double[] data, boolean connected)
Plot2D - setDraw(Plot2D plot, int[][] data)
Plot2D - setDraw(Plot2D plot, double[][] data)

Plot2D - setDraw(Plot2D plot, int[][] data, int[] clusters)
Plot2D - setDraw(Plot2D plot, double[][] data, int[] clusters)
Plot2D - setDraw(Plot2D plot, Object[] object)
Plot2D - setDraw(Plot2D plot, Object[] object, Paint[] colors)




EXAMPLES

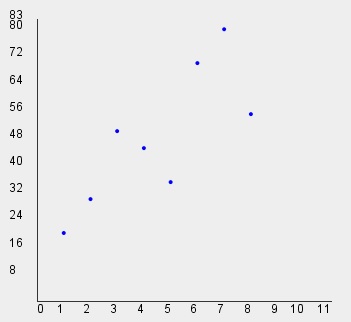

Example	VectorLib vlib=new VectorLib(); int[] data={20, 30, 50, 45, 35, 70, 80, 55}; vlib.setDraw(data);
Output

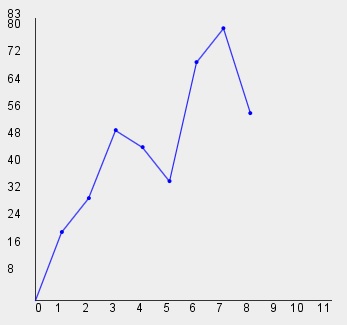

Example	VectorLib vlib=new VectorLib(); int[] data={20, 30, 50, 45, 35, 70, 80, 55}; vlib.setDraw(data, true);
Output

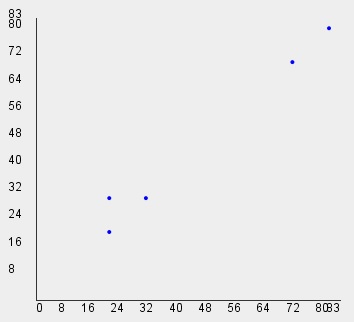

Example	VectorLib vlib=new VectorLib(); int[][] data={{20, 20}, {20, 30}, {30, 30}, {70, 70}, {80, 80}}; vlib.setDraw(data);
Output

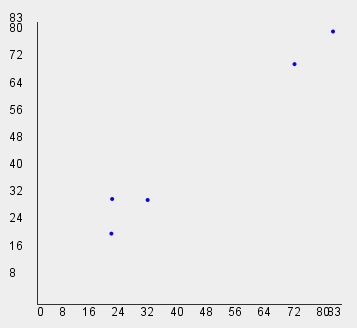

Example	VectorLib vlib=new VectorLib(); double[][] data={{20.3, 20.7}, {20.5, 30.9}, {30.2, 30.6}, {70.3, 70.6}, {80.8, 80.2}}; vlib.setDraw(data);
Output

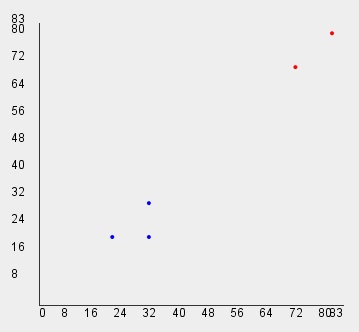

Example	VectorLib vlib=new VectorLib(); int[][] data={{20, 20}, {30, 20}, {30, 30}, {70, 70}, {80, 80}}; int[] clusters={0, 0, 0, 1, 1}; vlib.setDraw(data, clusters);
Output

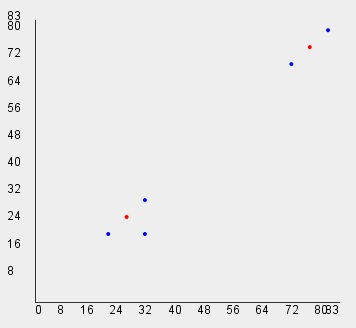

Example	VectorLib vlib=new VectorLib(); int[][] data={{20, 20}, {30, 20}, {30, 30}, {70, 70}, {80, 80}}; int[][] centroids={{25, 25}, {75, 75}}; Object[] object={data, centroids}; vlib.setDraw(object);
Output

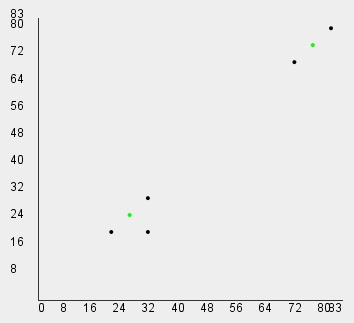

Example	VectorLib vlib=new VectorLib(); int[][] data={{20, 20}, {30, 20}, {30, 30}, {70, 70}, {80, 80}}; int[][] centroids={{25, 25}, {75, 75}}; Object[] object={data, centroids}; //You have to import java.awt.Color and import java.awt.Paint Paint[] colors={Color.black, Color.green}; vlib.setDraw(object, colors);
Output

Example	VectorLib vlib=new VectorLib(); double[][] data=null; vlib.view(data.length); Plot2D plot=null; for (int i=0; i<5; i++) {      data=vlib.initArrayRandom(5, 2, 0.0, 100.0);      plot=vlib.setDraw(plot,data);      vlib.delay(); }
Output	View moving data in the plot
